34 kWp Solar PV System Overview
- Panels: 68 × JA Solar 505 W modules
- Total Capacity: 34.34 kWp
- Mounting System: Renusol Metasole
- Layout: System split across two roof areas to optimise available space and generation profile
This setup will deliver strong generation performance, especially with the high‑efficiency JA Solar modules, providing significant savings and carbon reduction for the client.
The right hand 34 Panel array on the day of commissioning, a very wet and dull day, yet the system was still managing to produce up to an impressive 6 kWH.

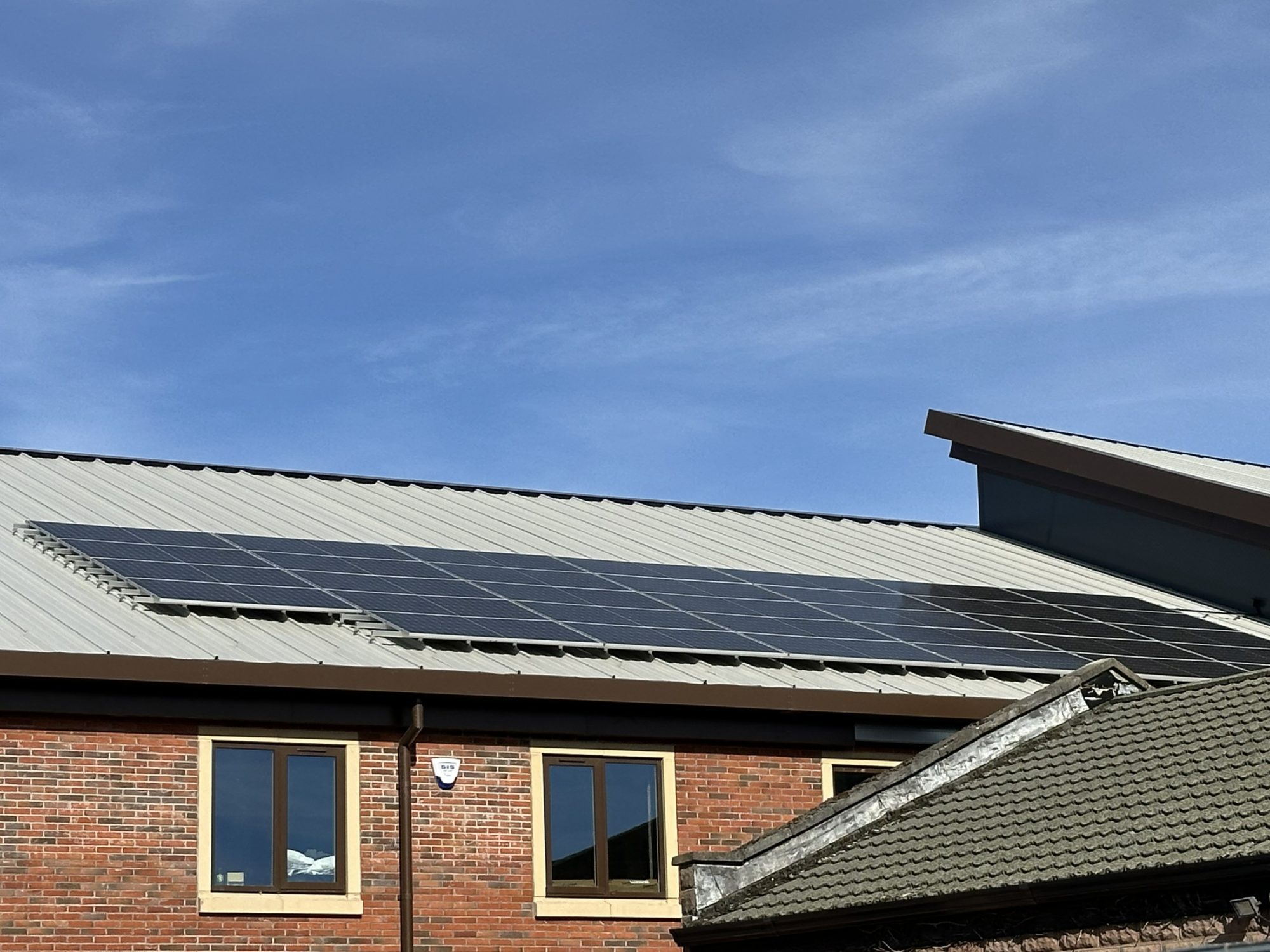

The left hand 34 Panel array on a brighter day.

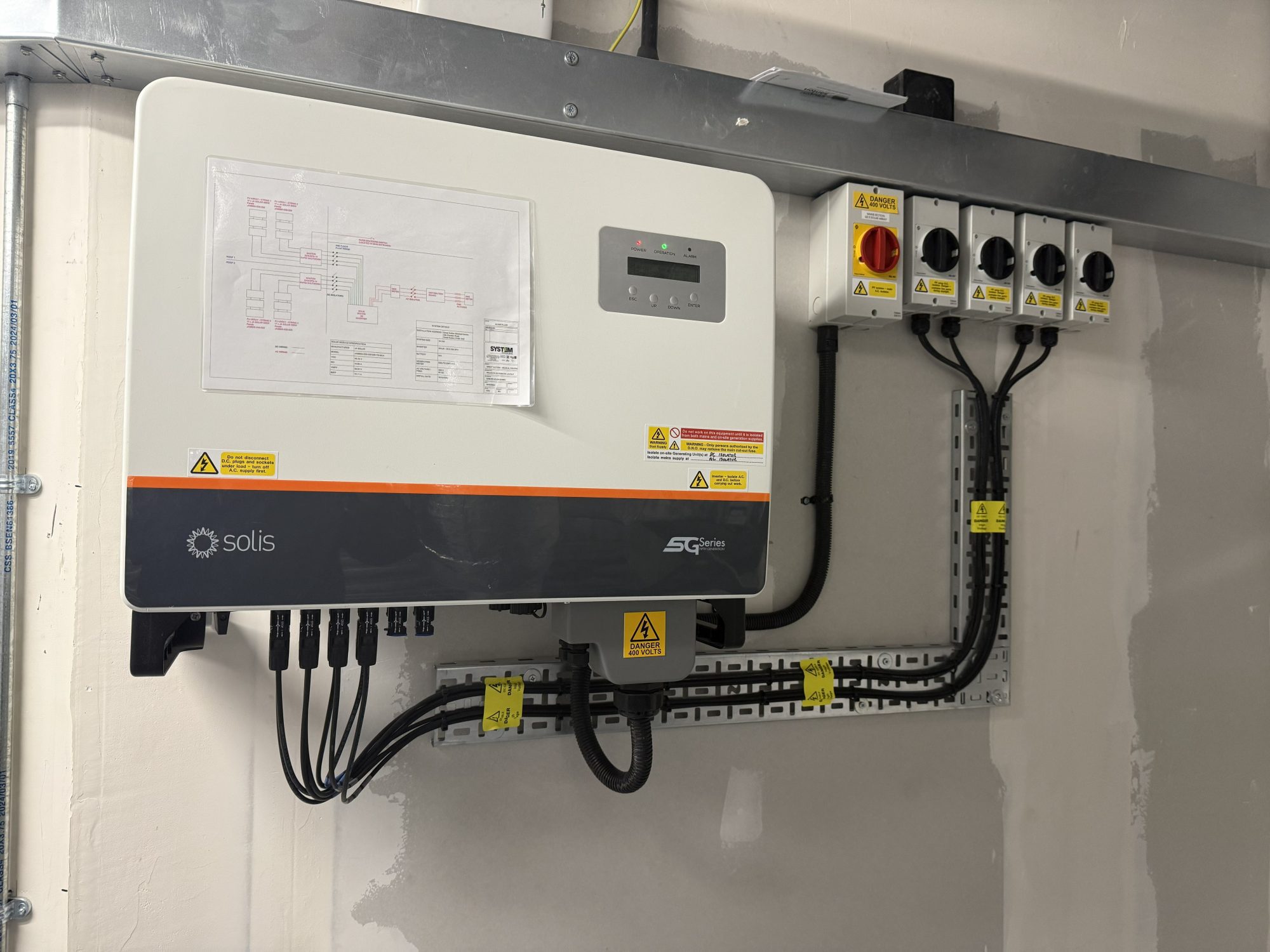

The ultra reliable, Solis 30 Kw Inverter

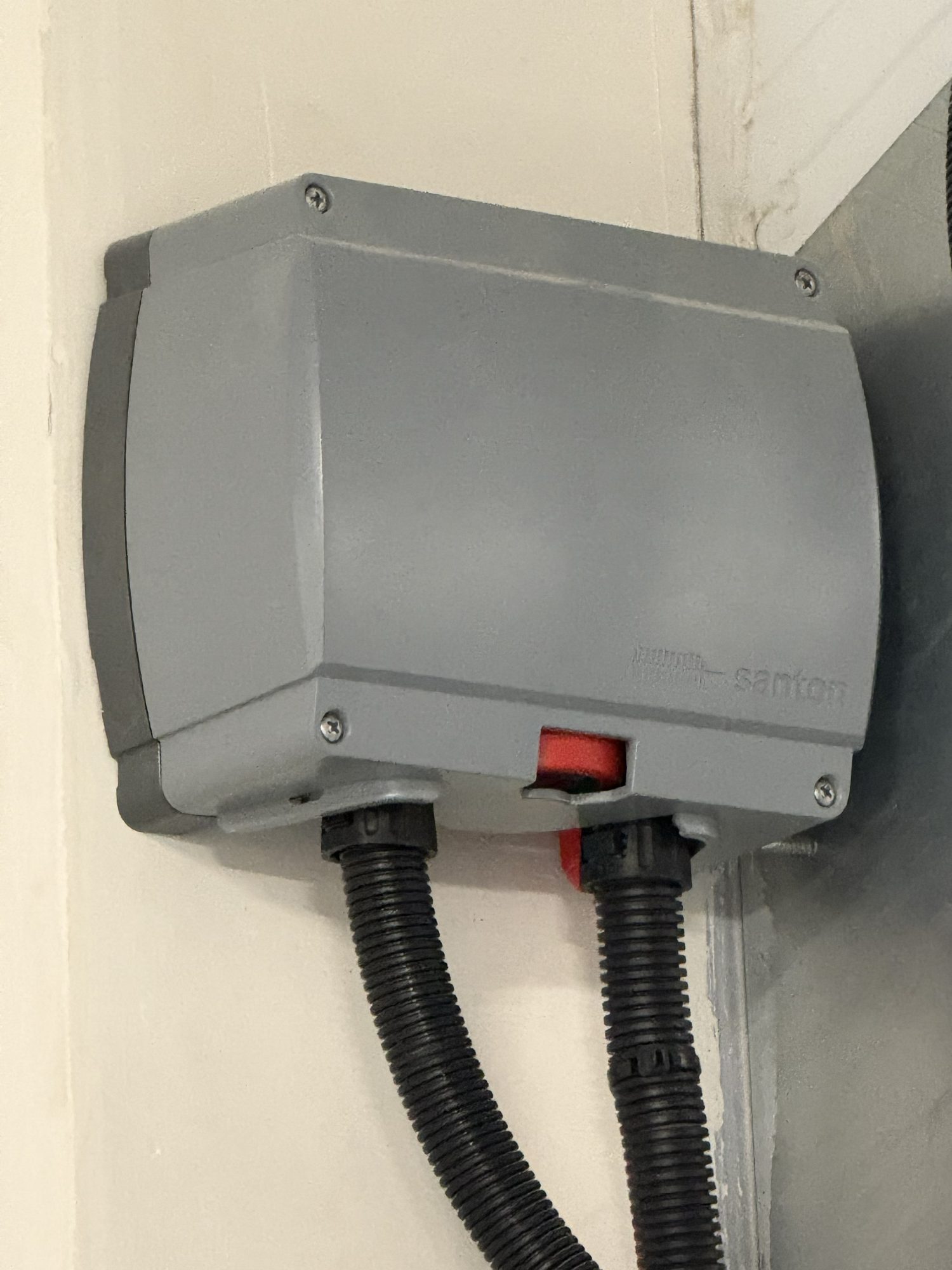

The system benefits from a Santon Rapid shutdown system enabling the fire service to isolate the DC power.

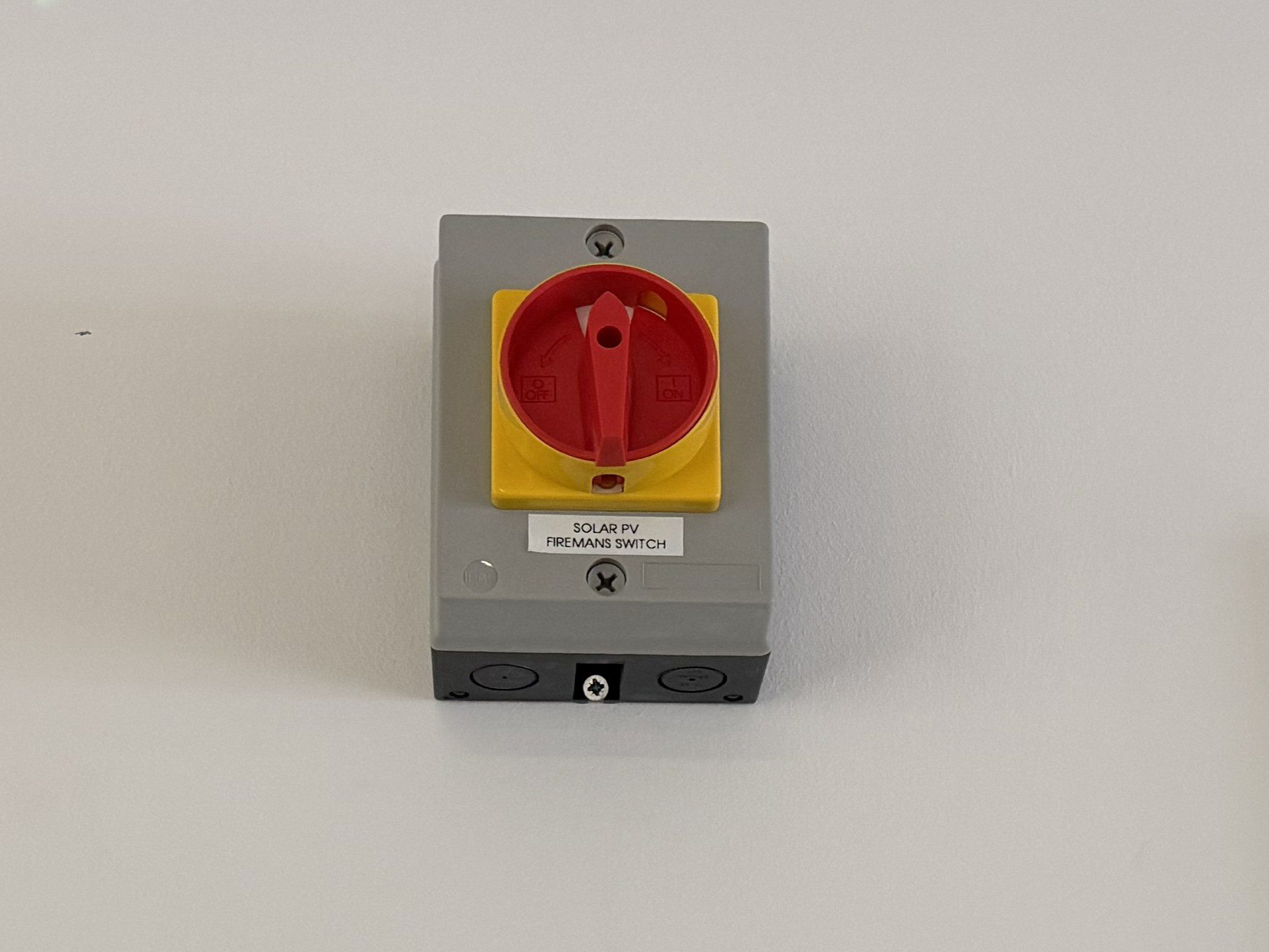

From the the safety of the isolation switch located in the main reception

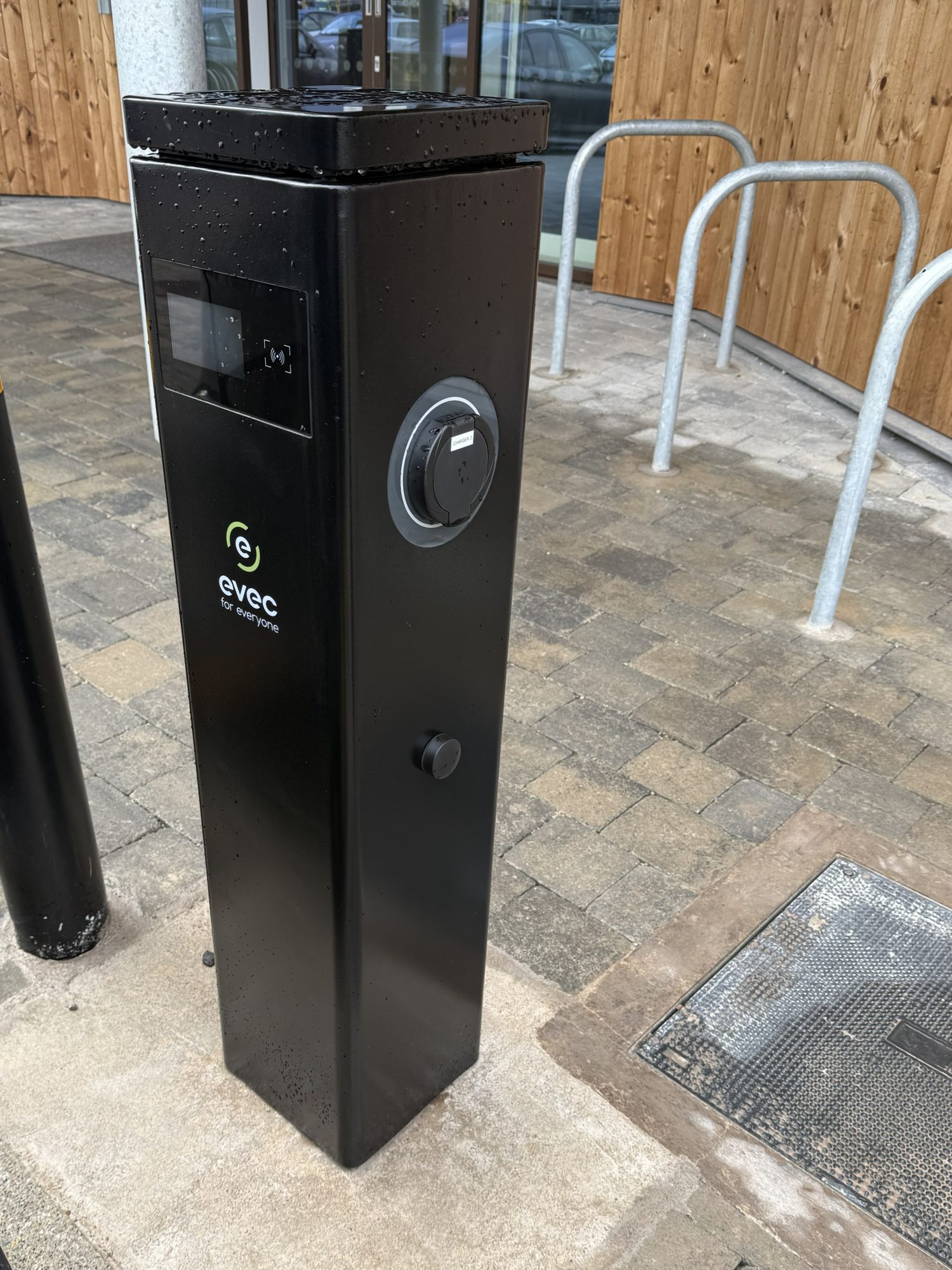

The EVEC Electric Vehicle charger, positioned conveniently in the car park, near the main entrance.
Solar Photovoltaic scheme design
Mounting system design Utilising Renusol’s design software, enabling a 20 year manufacturers guarantee.
G99 application and SP Energy Networks connection agreement.
Installation of the Renusol Metasole mounting system.
Securing the 68x JA Solar 505watt solar modules.
DC cabling with cable containment and UV protection.
Installation of inverter and isolation points.
Inclusion of a Rapid shut down system enabling the DC energy to be isolated from the safety of the main lobby.
Installation if EV Charger.
Connect, energise, test, commission and certification.
Full system demonstration to the client.
